SAE 100 R1

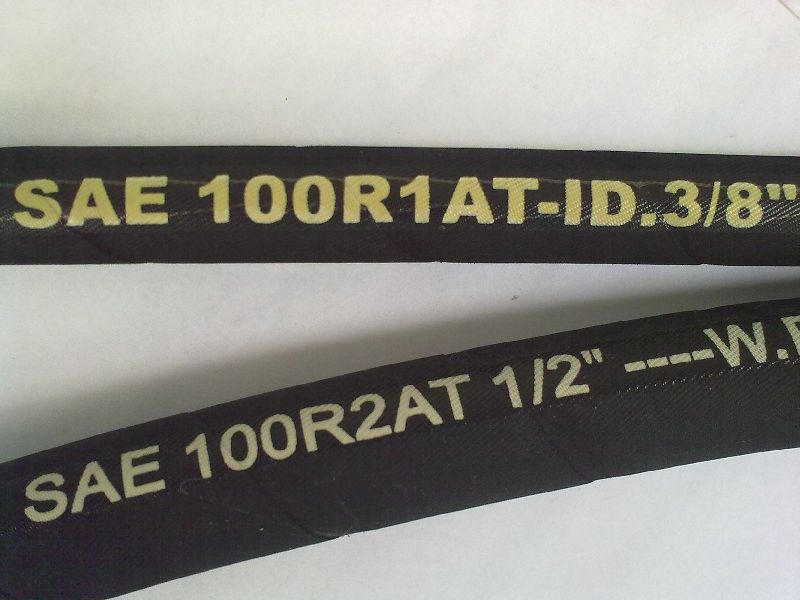

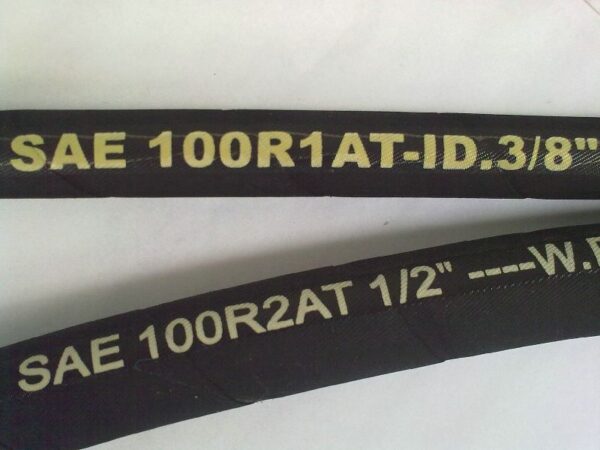

Hydraulic Hose – SAE 100 R1 / EN 853 1SN

Tube: Made of black, oil-resistant synthetic rubber.
Reinforcement: Braided with a single layer of high-tensile steel wire for added strength.
Cover: Constructed from black synthetic rubber, offering resistance to oil, corrosion, and abrasion.
Standards Compliance: Conforms to SAE 100 R1 and EN 853 1SN specifications.
Temperature Range: Suitable for use between -40°C and +100°C.
Hose Sizes:

• Inner Diameter (ID): Ranges from 4.8 mm to 50.8 mm

• Outer Diameter (OD): Ranges from 12.5 mm to 65.9 mm

Applications:
This steel wire-reinforced hydraulic hose is ideal for medium-pressure applications and provides higher working pressure capability than conventional rubber hoses. It is especially effective for oil transmission and is commonly used in forklifts, hydraulic engines, oilfield operations, mining, roadwork, and construction equipment.
